Owyhee Trailer
Owyhee Trailer
We are working on an overlanding trailer concept. The key goal for this project is to provide a simple, lightweight enclosed hangout space that can be converted easily to sleeping...to be used as a basecamp for wheeling adventures.
We are working on an overlanding trailer concept. The key goal for this project is to provide a simple, lightweight enclosed hangout space that can be converted easily to sleeping...to be used as a basecamp for wheeling adventures.
We experienced the need for this while "winter" camping in the Owyhee Canyonlands when I wheeled my FJ Camper (and slept in my very cold RTT), but then used my brother's 1966 VW bus to stay warm and dry after returning to camp. It made us think that we are not alone in needing this kind of basecamp trailer.
We experienced the need for this while "winter" camping in the Owyhee Canyonlands when I wheeled my FJ Camper (and slept in my very cold RTT), but then used my brother's 1966 VW bus to stay warm and dry after returning to camp. It made us think that we are not alone in needing this kind of basecamp trailer.
Welded steel base frame
Welded steel base frame
Timbren axle-less suspension
Timbren axle-less suspension
Trailer brake and signal lighting
Trailer brake and signal lighting
A/T tires on 16" wheels (two plus spare)
A/T tires on 16" wheels
.75" sheathed plywood foundation
.75" sheathed plywood foundation
Flooret vinyl plank finish floor (floating)
Flooret vinyl plank finish floor
Rear offset receiving hitch
Rear offset receiving hitch
Attic fan with remote control
Attic fan with remote control
Lippert RV entry system steps
Ark drop down corner stabilizer jacks
Ark drop down corner stabilizer jacks
Custom modular aluminum roof rack
Custom modular aluminum roof rack
Welded aluminum tube body frame "cage" bolted to steel base frame
Welded aluminum tube body frame
1.5" ZIP system insulated subfloor
1.5" ZIP system insulated subfloor
Safeboard exterior aluminum honeycomb panels (5/8" thick)
Safeboard exterior aluminum panels
Fabric wrapped 1/4" Baltic birch plywood/landau foam interior panels
Baltic birch plywood interior panels
Power station with integral MPPT mounted under pantry
Power station with integral MPPT
Dickinson P9000 propane furnace and 10 pound tank
Dickinson P9000 propane furnace
Kammok Crosswing awning
Kammok Crosswing awning over the entry door
Four LED exterior flood pod lights
Havelock wool 2" batt wall and roof thermal/acoustic insulation
Havelock wool 2" batt insulation
Frameless windows with awning style vents
Frameless windows w/ vents
Aluminum roof access ladder
Aluminum roof access ladder
Lippert RV entry system steps
Locking access doors for plumbing, fridge, and water tank servicing
Locking exterior service access doors
Exterior storage bin with locking access doors and spare tire mount
Exterior storage bin with locking doors
Spare tire mount on storage bin
Industrial-grade aluminum extrusion framing for internal furniture
Aluminum extrusion furniture framing
Baltic birch plywood panels, laminated where necessary
Laminated Baltic birch plywood panels
Solid birch drawer boxes with dovetail joinery
Dovetailed, solid birch drawer boxes
Slide-out bench seats that convert to a full-size bed
Full-size bench/bed
Hinged trash receptacle/bin integrated into the galley cabinet
Hinged lid trash receptacle/bin
Drop-down bamboo table with hinged support leg
Drop-down bamboo table
Pantry cabinet behind table and on top of galley countertop
Pantry cabinet with table mount
Full-height closet with hinged door and adjustable shelves
Full-height storage closet
Camp stove drawer with laminated hinged lid on 28" slides
Camp stove drawer w/ hinged lid
Wrappon porta potti in enclosed garage with hinged lid
Wrappon porta potti in enclosed garage
Internal LED lighting
Internal LED lighting
Rear offset receiving hitch
Blue Sea ST Blade fuse block for DC load distribution (six circuits)
Blue Sea ST Blade fuse block
Aquor freshwater fill inlet and drain (with hose connectors)
Aquor freshwater fill inlet/drain
15 gallon fresh water tank with 3.0 GPM water pump
15 gallon fresh water tank
3.0 GPM water pump
BougeRV 100W solar panels (3) mounted to roof rack
BougeRV 100W solar panels (3)
Specifications
Specifications
Exterior
Rear quarter view with camp stove drawer deployed.

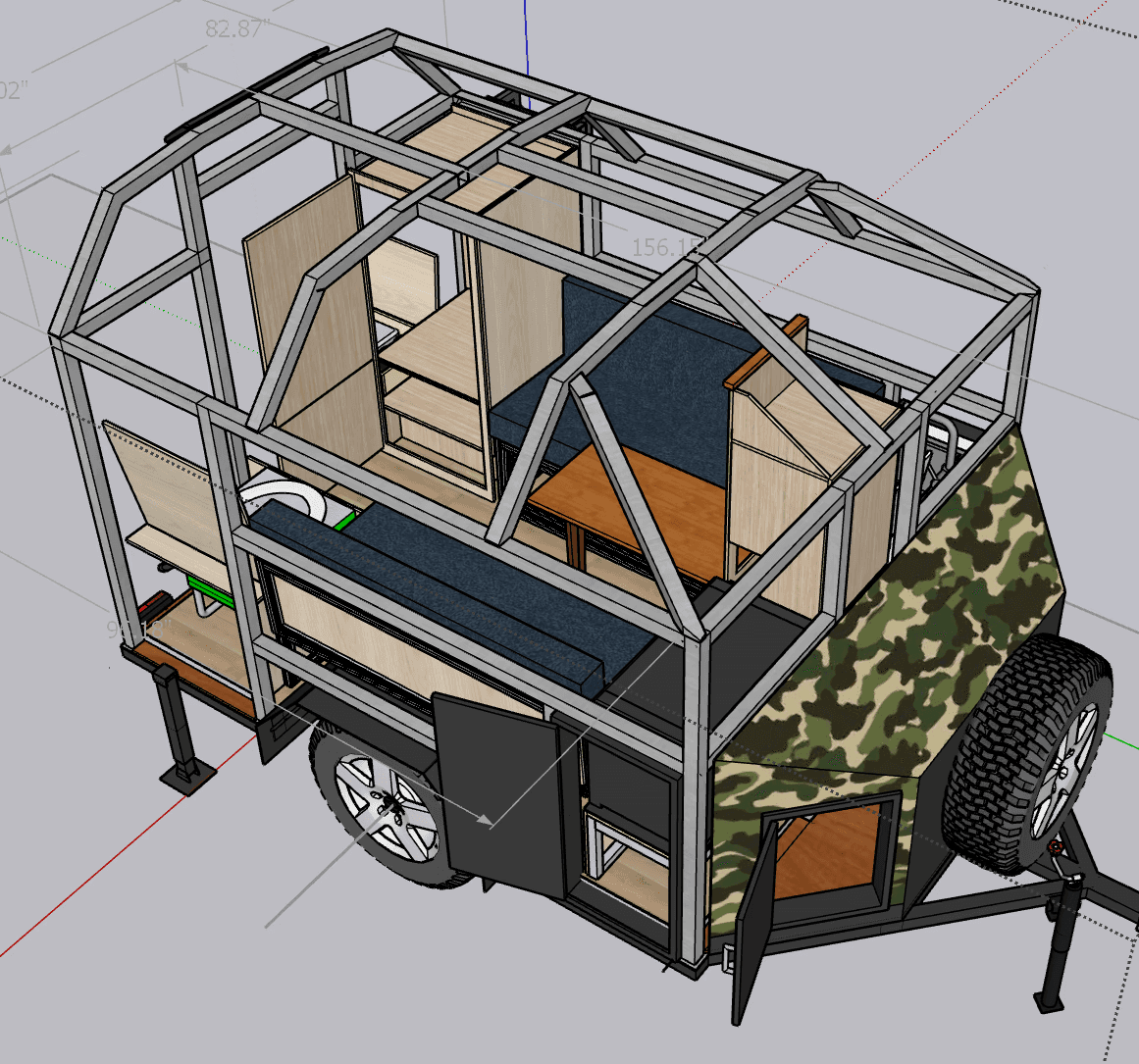

Aluminum frame
Aluminum body framing "cage" with closet door, drawer, and Wrappon garage lid open.
Interior table down

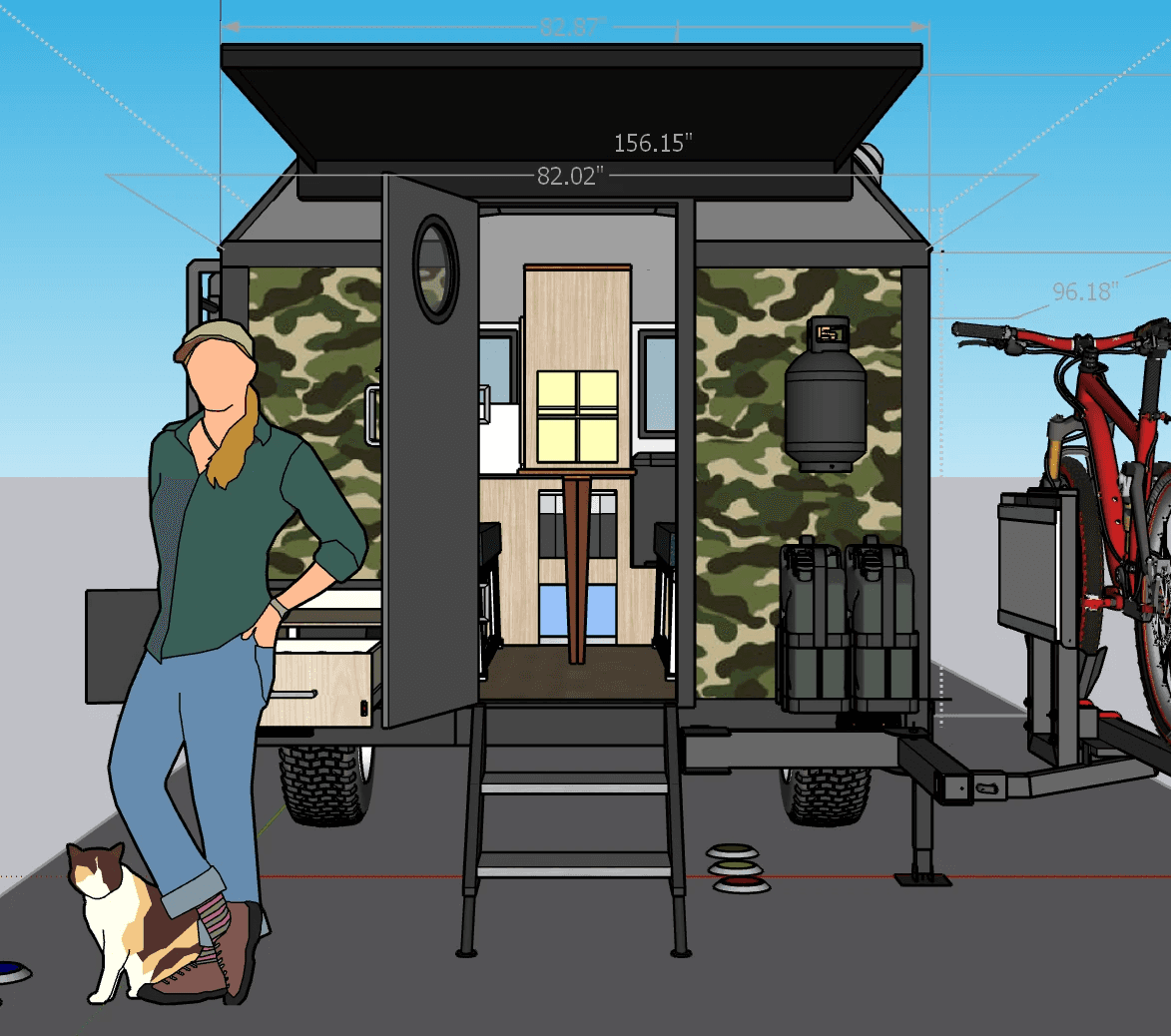

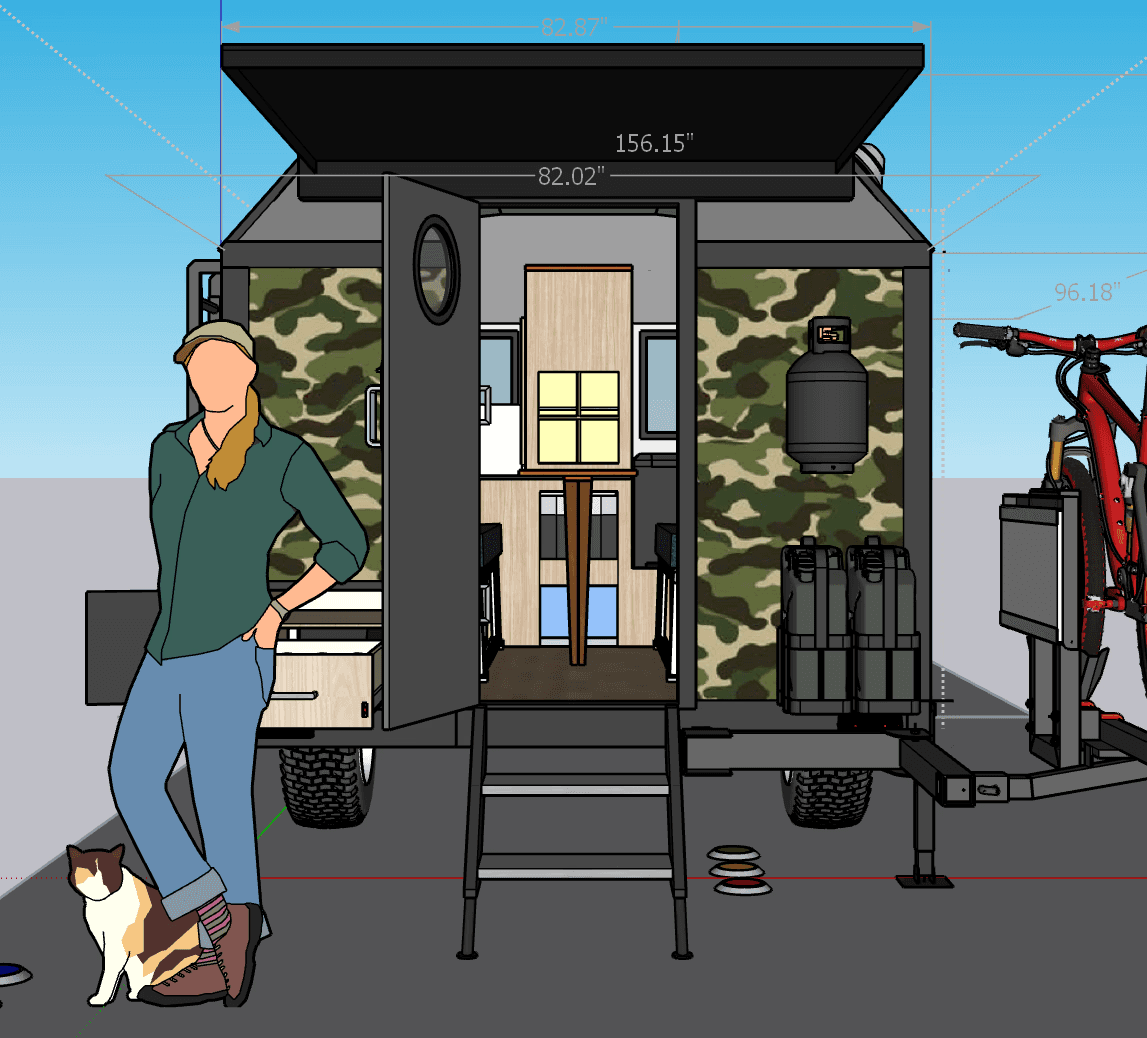

Rear view with entry door open. Furnace is mounted inside opposite the propane tank.

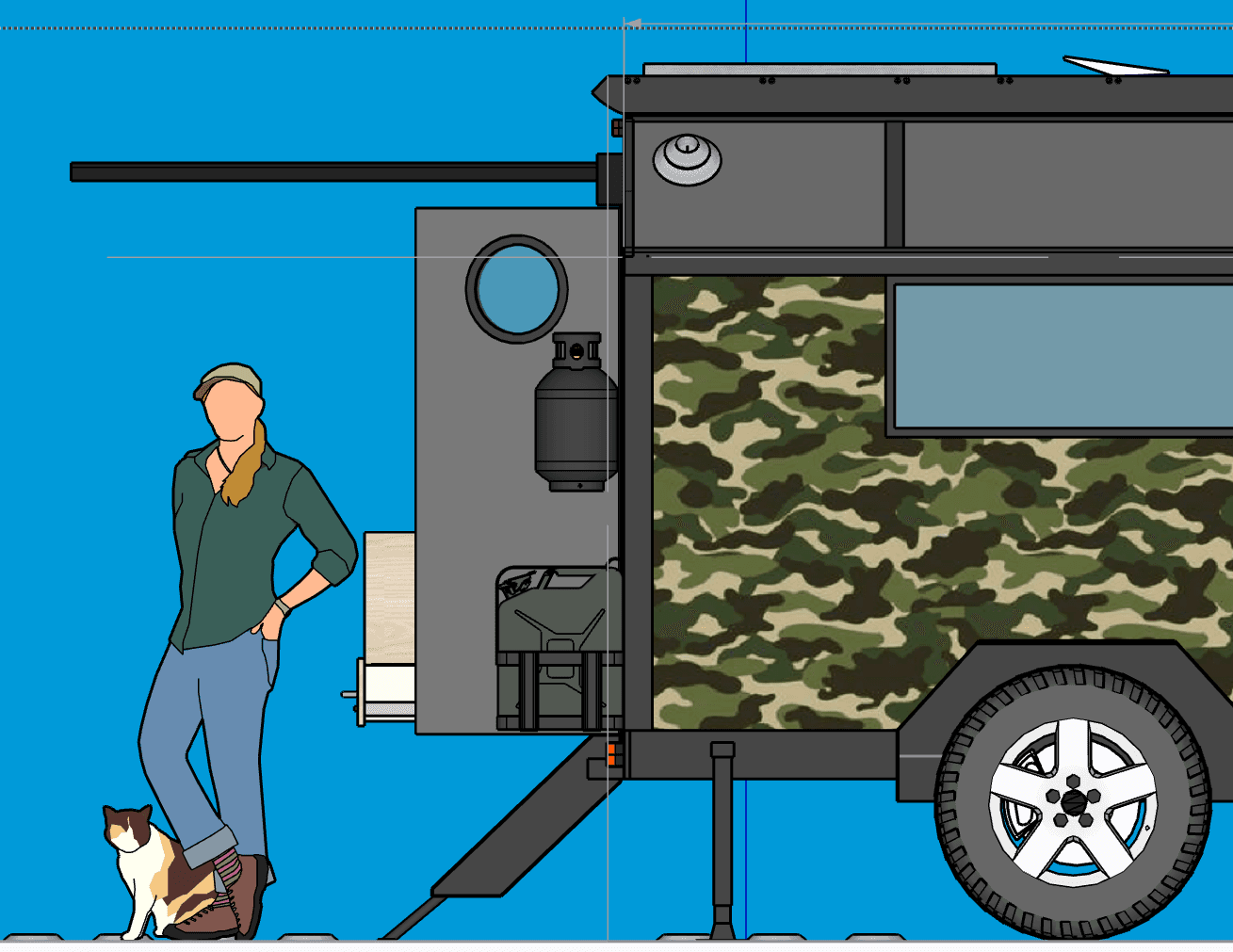

Side view
Side view showing propane tank, furnace chimney, and jerry cans. Also roof rack and Crosswing awning.

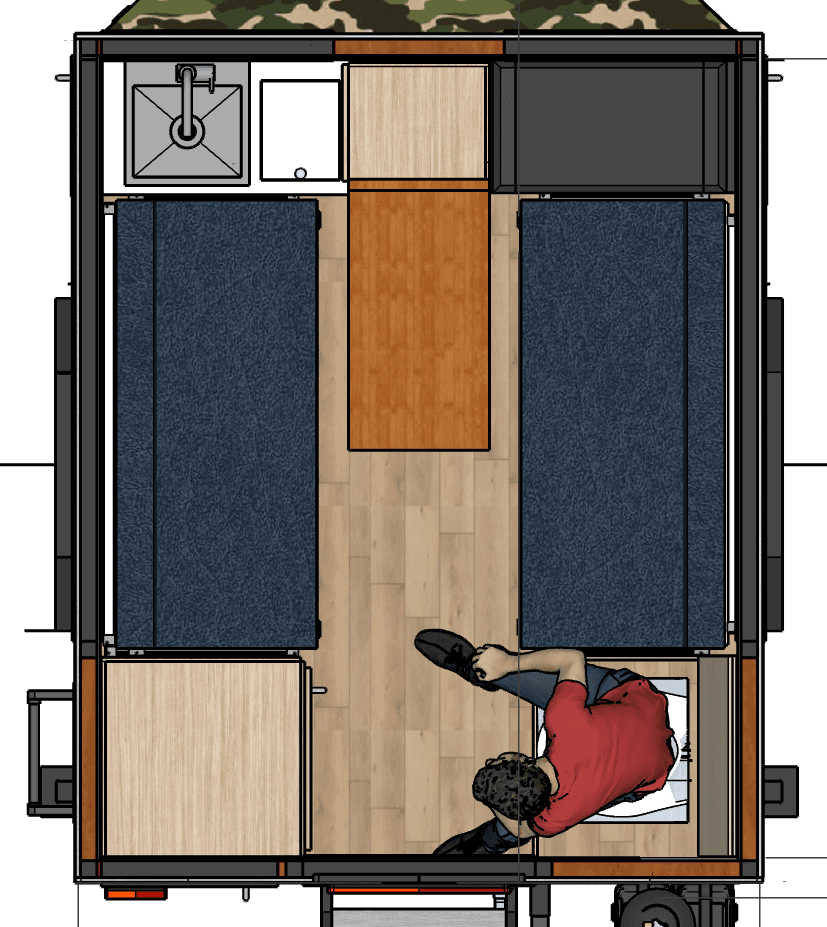

Privacy please
Wrappon being used, drop-down bamboo table deployed, and trash lid closed.

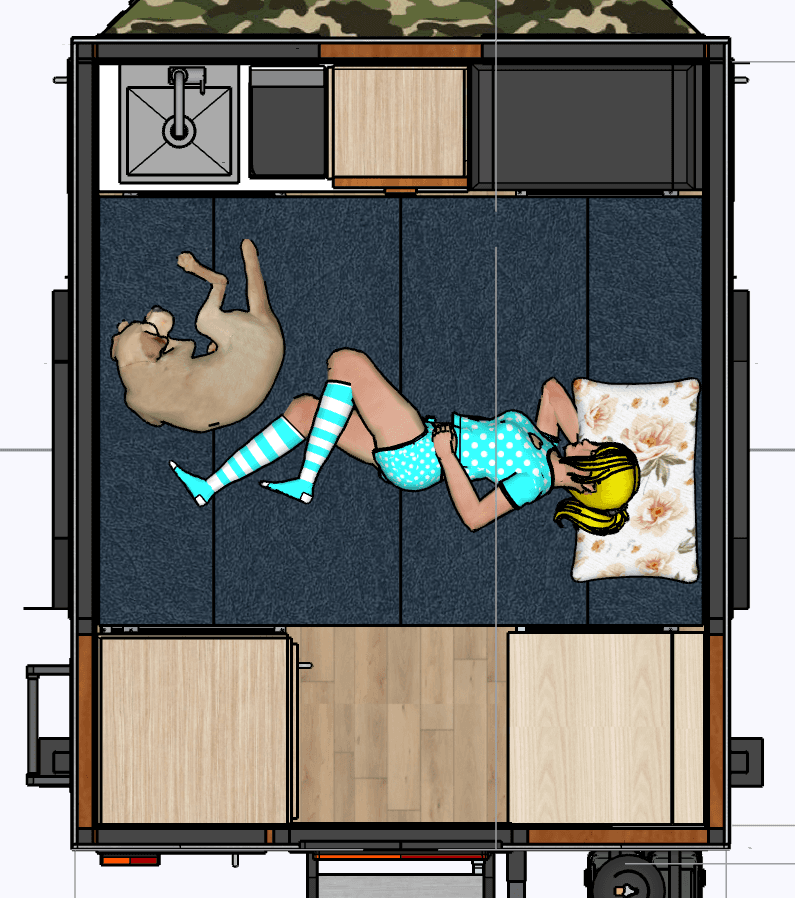

Sleep mode
Benches slid out and back cushions filling in to make the full-sized bed.
Exterior
Rear quarter view with camp stove drawer deployed.
Aluminum frame
Aluminum body framing "cage" with closet door, drawer, and Wrappon garage lid open.
Interior table down
Rear view with entry door open. Furnace is mounted inside opposite the propane tank.
Side view
Side view showing propane tank, furnace chimney, and jerry cans. Also roof rack and Crosswing awning.
Privacy please
Wrappon being used, drop-down bamboo table deployed, and trash lid closed.
Sleep mode
Benches slid out and back cushions filling in to make the full-sized bed.
