Eiger Vans
The modern Westy camper...built on your choice of van platform. Everything you expect from a Westy (minus the maintenance issues), plus everything you expect from a large Class B camper van (minus the height and parking headaches). We make all the mission-critical electrical components super easy to access using a heavy-duty full-extension drawer...we call it the PowerSlide.
Eiger Vans
The modern Westy camper...built on your choice of van platform. Everything you expect from a Westy (minus the maintenance issues), plus everything you expect from a large Class B camper van (minus the height and parking headaches). We make all the mission-critical electrical components super easy to access using a heavy-duty full-extension drawer...we call it the PowerSlide.
Eiger-1 Camper
Eiger-1 Camper

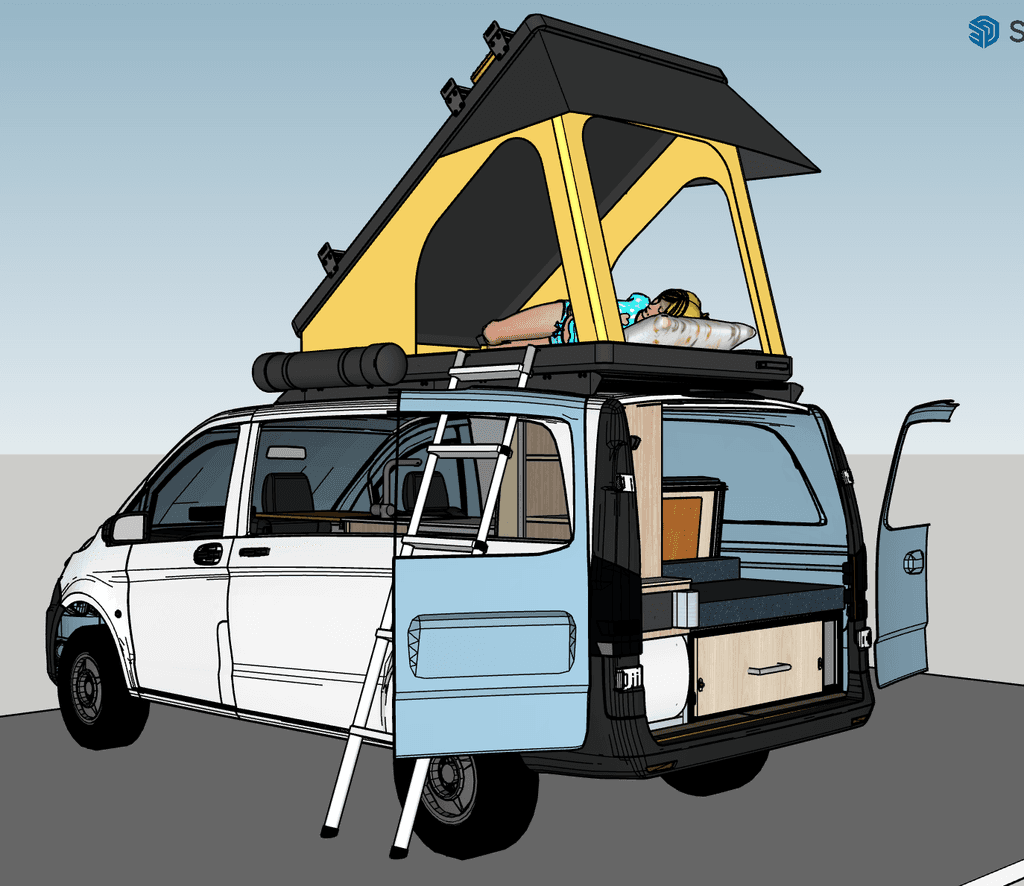

Built on the 126" wheelbase Mercedes-Benz Metris, the Eiger-1 Camper is a compact overlanding vehicle that despite its smaller size, includes most of the features found in larger Class B camper vans. 41" wide bench/bed, dual sliding doors, modular roof rack, RTT (second bed), solar panels, 4.5 gallon exterior water tank, and bamboo pivot table. 14 gallon interior fresh water tank. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen . Water fill and drain at driver side sliding door. Optional SCA pop-top replaces roof setup and provides standing headroom inside the van.
Built on the 126" wheelbase Mercedes-Benz Metris, the Eiger-1 Camper is a compact overlanding vehicle that despite its smaller size, includes most of the features found in larger Class B camper vans. 41" wide bench/bed, dual sliding doors, modular roof rack, RTT, solar panels, and 4.5 gallon exterior water tank. 14 gallon interior fresh water tank. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen. Water fill and drain at driver side sliding door. Optional SCA pop-top replaces roof setup and provides standing headroom inside the van.
Eiger -2 Camper
Eiger-2 Camper
Built on the 144" wheelbase low-roof Mercedes-Benz Sprinter, the Eiger-2 Camper is a capable overlanding vehicle that delivers substantial interior space, especially with the pop-top open. 47" wide bench/bed, dual sliding doors, 2000 watt inverter/charger, 304Ah LiFePO4 house battery, and bamboo pivot table. 19 gallon interior fresh water tank. Overhead shelf above galley. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen. Wired for solar. Water fill and drain at driver side sliding door. Field Van motorized pop-top adds a second bed and standing headroom inside the van.
Built on the 144" wheelbase low-roof Mercedes-Benz Sprinter, the Eiger-2 Camper is a capable overlanding vehicle that delivers substantial interior space, especially with the pop-top open. 47" wide bench/bed, dual sliding doors, 2000 watt inverter/charger, 304Ah LiFePO4 house battery, and bamboo pivot table. 19 gallon interior fresh water tank. Overhead shelf above galley. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen. Wired for solar. Water fill and drain at driver side sliding door. Field Van motorized pop-top adds a second bed and standing headroom inside the van.
Eiger-3 Camper
Eiger-3 Camper
Built on the 148" wheelbase mid-roof Ford Transit, the Eiger-3 Camper is our largest van conversion design in terms of interior space, leaving plenty of room for a bike to be mounted inside the rig. 47" wide bench/bed, 2000 watt inverter/charger, 304Ah LiFePO4 house battery, and bamboo pivot table. 19 gallon interior fresh water tank. Overhead cabinet above galley. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen. Wired for solar. Water fill and drain at driver side. Field Van motorized pop-top adds a second bed and standing headroom inside the van.
Built on the 148" wheelbase mid-roof Ford Transit, the Eiger-3 Camper is our largest van conversion design in terms of interior space, leaving plenty of room for a bike to be mounted inside the rig. 47" wide bench/bed, 2000 watt inverter/charger, 304Ah LiFePO4 house battery, and bamboo pivot table. 19 gallon interior fresh water tank. Overhead cabinet above galley. Hot water heater. Outdoor shower. 30 amp shore power. Iceco portable fridge/freezer. PowerSlide electrical drawer/outdoor kitchen. Wired for solar. Water fill and drain at driver side. Field Van motorized pop-top adds a second bed and standing headroom inside the van.
Metris (Eiger-1), Sprinter (Eiger-2), or Transit (Eiger-3) base van
Fully insulated with 3M Thinsulate, Kilmat, and LizardSkin
1/4" Baltic birch padded and fabric wrapped wall panels
Optional SCA pop-top for Eiger-1
Swivel passenger seat
Flooret vinyl plank finish floor (floating)
CRL vented windows with screens
Attic fan with remote control
Industrial-grade aluminum extrusion framing for internal furniture
Rear-facing drawer for storage/electrical components (PowerSlide)
Custom modular aluminum roof rack (Eiger-1 only)
Full height storage with aluminum tambour door and hanging closet
Insulated subfloor
Shoe cubby under fridge with LED night light
Storage cubby at slider step (Eiger-2 and Eiger-3 only)
Iceco VL45ProS (Eiger-1) and VL60ProS (Eiger-2/3) fridge/freezer
Storage cabinet above the galley with LED lighting (Eiger-3 only)
Storage shelf above the galley with LED lighting (Eiger-2 only)
Bike fork mount at full-height cabinet door (Eiger-2/3 only)
Galley storage cubby above water tank
LED house lights, reading light, and cabinet lights
Blue Sea switches for main power, solar, and starter battery isolation
Corian galley countertop and backsplash
¾” bamboo and stainless steel pivot table with two mounting locations
Aluminum roof access ladder
4.5” Dacron-wrapped, removable bench/bed cushions
Water pump and accumulator tank
Ruvati stainless steel deep sink with cutting board and rack inserts
Baltic birch plywood panels, laminated where necessary
Solid birch drawer boxes with dovetail joinery
Gray water tank with electronic drain valve (Eiger-2/3 only)
Bosch 4-gallon hot water system (110V)
Exterior hot/cold shower at rear of van with water pump switch
Xantrex 2000-watt inverter/charger and control panel
Redarc DC-DC 50A charger with MPPT
Prismatic cell 304Ah LiFePO4 house battery with 250A terminal fuse
Overkill battery management system (BMS)
Victron BMV 712 Smart Battery Monitor with shunt
Blue Sea ST Blade fuse block for DC load distribution (six circuits)
Aquor freshwater fill inlet and drain (with hose connectors)
Webasto Air Top 2000 heater (fuel supplied from vehicle fuel tank)
BougeRV 100W solar panels mounted to roof rails
Smartplug 30-amp shore power inlet and cable
LED water tank illumination light (for checking water level)
Specifications
PowerSlide drawer
PowerSlide drawer
Half the drawer is storage, the other half holds the house battery, BMS, inverter/charger, and large cables. Doubles as an outdoor kitchen.
Half the drawer is storage, the other half holds the house battery, BMS, inverter/charger, and large cables. Doubles as an outdoor kitchen.
Bench/bed
Bench/bed
"Rock 'n roll" style seating converts easily into a 41" x 79" or 47" x 82" bed leaving enough room to move in and out through the sliding door.
"Rock 'n roll" style seating converts easily into a 41" x 79" or 47" x 82" bed leaving enough room to move in and out through the sliding door.
Porta potti garage
Porta potti garage
Optional cushioned furniture that hides the porta potti and doubles as an ottoman…either for the bench or a swiveled front seat .
Optional cushioned furniture that hides the porta potti and doubles as an ottoman…either for the bench or a swiveled front seat .
Bike storage (Eiger-3)
Bike storage (Eiger-3)
Uses the space behind the bench to store a bike vertically with the front wheel removed. Store the wheel in a bag and leave it on the bed.
Uses the space behind the bench to store a bike vertically with the front wheel removed. Store the wheel in a bag and leave it on the bed.
Pivot table
Pivot table
Stores either above the fridge or clipped to the back of the bench when not in use. Note the optional ceiling-mounted rear speakers
Stores either above the fridge or clipped to the back of the bench when not in use. Note the optional ceiling-mounted rear speakers
The Westy entry
The Westy entry
Open and inviting, not crammed with furniture…this is our favorite aspect of the Westy and our unabashed homage to that great design.
Open and inviting, not crammed with furniture…this is our favorite aspect of the Westy and our unabashed homage to that great design.
The Eiger Vans Mission
The Eiger Vans Mission
We love the classic Westy. But as popular as the Westy has been, owning a Westy is not an inexpensive endeavor. The vehicles themselves are typically 30-40 years old. The engines in these vans are undersized and have a difficult time climbing even moderate grades without overheating. They require near constant maintenance including engine rebuilds, engine replacements, fuel line replacements (so they don’t catch on fire), and cooling system repairs. Most don’t have working air conditioning. None were originally built with inverters for running AC-powered devices and appliances. As much as the Westy is loved for its vibe, it is unfortunately a vehicle that can’t be trusted 100% to get its owner home from a dispersed camping spot that is out of cell phone service range. If someone wants to buy a new VW Westy, their only option is the VW California. Unfortunately, the California is not available for sale in North America and VW has no published plans to do so in the foreseeable future. Large high roof Class B RVs offer a different set of ownership issues: they are difficult to park (or run afoul of HOA rules), are often under-powered, get poor fuel mileage, and simply are larger vehicles than what many buyers need.
The solution to the Westy/large Class B dilemma is a modern camper van that includes the defining features of the Westy: compact size for easy parking (even in a garage or in a neighborhood with strict HOA rules), pop-top for second bed and standing headroom, bench seat that folds out into a bed, small galley with sink, fridge, and room to cook, swivel front seats, and open space in the middle of the van for hanging out. And all of that built on a trustworthy platform with A/C, modern sound system, and ample power for climbing hills and for freeway driving at posted speed limits. The mid-roof Transit, low-roof Sprinter, and Metris are ideal platforms for such a modern Westy (with the Transit and Sprinter offering more spacious interiors) and are readily available in the U.S. They are reasonably priced, have companies building pop-tops specifically for them, can be parked in a residential garage (well, perhaps not the Sprinter or Transit), have interior space roughly equivalent to (or larger than) the VW Westy, and have sufficient power for care-free highway driving with respectable fuel mileage.
Between the Metris and the Sprinter, the Sprinter is perhaps the better of the two options (although quite a bit more expensive). Not only is it much larger inside, but offers a new full-time AWD system replacing the somewhat difficult to use previous 4WD system. New 4-cylinder turbo diesel engines are available with increased torque and better fuel economy. The Sprinter can accept large off-road tires and there are excellent suspension upgrade and lift packages available from Agile Off Road and Van Compass that greatly improve driving performance and comfort both on and off road. There is also a large selection of mods for the Sprinter from such companies as Owl Vans, Aluminess, Flarespace, and CAtuned to name just a few.
Between the low-roof Sprinter and the mid-roof Transit, the Transit is perhaps the better of the two options (and less expensive). It offers a higher horsepower and higher torque gas engine (the 3.5L EcoBoost) which makes freeway hill climbing easier, AWD, and more space inside the van than the Sprinter. The Transit can be lifted and will accept up to 30.5" AT tires. Factory swivel seats are available along with options designed to facilitate conversions. The Transit has a growing list of mod vendors with names well established for Sprinter mods and some just focused on the Transit like AVC Rig.
We love the classic Westy. But as popular as the Westy has been, owning a Westy is not an inexpensive endeavor. The vehicles themselves are typically 30-40 years old. The engines in these vans are undersized and have a difficult time climbing even moderate grades without overheating. They require near constant maintenance including engine rebuilds, engine replacements, fuel line replacements (so they don’t catch on fire), and cooling system repairs. Most don’t have working air conditioning. None were originally built with inverters for running AC-powered devices and appliances. As much as the Westy is loved for its vibe, it is unfortunately a vehicle that can’t be trusted 100% to get its owner home from a dispersed camping spot that is out of cell phone service range. If someone wants to buy a new VW Westy, their only option is the VW California. Unfortunately, the California is not available for sale in North America and VW has no published plans to do so in the foreseeable future. Large high roof Class B RVs offer a different set of ownership issues: they are difficult to park (or run afoul of HOA rules), are often under-powered, get poor fuel mileage, and simply are larger vehicles than what many buyers need.
The solution to the Westy/large Class B dilemma is a modern camper van that includes the defining features of the Westy: compact size for easy parking (even in a garage or in a neighborhood with strict HOA rules), pop-top for second bed and standing headroom, bench seat that folds out into a bed, small galley with sink, fridge, and room to cook, swivel front seats, and open space in the middle of the van for hanging out. And all of that built on a trustworthy platform with A/C, modern sound system, and ample power for climbing hills and for freeway driving at posted speed limits. The mid-roof Transit, low-roof Sprinter, and Metris are ideal platforms for such a modern Westy (with the Transit and Sprinter offering more spacious interiors) and are readily available in the U.S. They are reasonably priced, have companies building pop-tops specifically for them, can be parked in a residential garage (well, perhaps not the Sprinter or Transit), have interior space roughly equivalent to (or larger than) the VW Westy, and have sufficien t power for care-free highway driving with respectable fuel mileage.
Between the Metris and the Sprinter, the Sprinter is perhaps the better of the two options (although quite a bit more expensive). Not only is it much larger inside, but offers a new full-time AWD system replacing the somewhat difficult to use previous 4WD system. New 4-cylinder turbo diesel engines are available with increased torque and better fuel economy. The Sprinter can accept large off-road tires and there are excellent suspension upgrade and lift packages available from Agile Off Road and Van Compass that greatly improve driving performance and comfort both on and off road. There is also a large selection of mods for the Sprinter from such companies as Owl Vans, Aluminess, Flarespace, and CAtuned to name just a few.
Between the low-roof Sprinter and the mid-roof Transit, the Transit is perhaps the better of the two options (and less expensive). It offers a higher horsepower and higher torque gas engine (the 3.5L EcoBoost) which makes freeway hill climbing easier, AWD, and more space inside the van than the Sprinter. The Transit can be lifted and will accept up to 30.5" AT tires. Factory swivel seats are available along with options designed to facilitate conversions. The Transit has a growing list of mod vendors with names well established for Sprinter mods and some just focused on the Transit like AVC Rig.
